1. Structural Qualities and Synthesis of Spherical Silica
1.1 Morphological Interpretation and Crystallinity

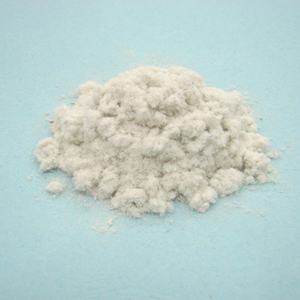

(Spherical Silica)
Spherical silica describes silicon dioxide (SiO TWO) fragments crafted with a very uniform, near-perfect spherical form, distinguishing them from standard uneven or angular silica powders originated from natural resources.
These bits can be amorphous or crystalline, though the amorphous type controls commercial applications due to its premium chemical stability, lower sintering temperature, and lack of stage transitions that could cause microcracking.
The spherical morphology is not normally prevalent; it needs to be artificially achieved via regulated procedures that govern nucleation, development, and surface area energy minimization.
Unlike crushed quartz or merged silica, which display jagged sides and broad dimension distributions, round silica functions smooth surfaces, high packing density, and isotropic behavior under mechanical stress, making it suitable for accuracy applications.
The bit size usually ranges from tens of nanometers to several micrometers, with tight control over size circulation allowing predictable performance in composite systems.
1.2 Controlled Synthesis Pathways
The primary approach for producing round silica is the Stöber process, a sol-gel technique established in the 1960s that involves the hydrolysis and condensation of silicon alkoxides– most generally tetraethyl orthosilicate (TEOS)– in an alcoholic option with ammonia as a catalyst.
By adjusting specifications such as reactant focus, water-to-alkoxide proportion, pH, temperature, and reaction time, scientists can specifically tune fragment size, monodispersity, and surface area chemistry.
This method returns extremely uniform, non-agglomerated balls with exceptional batch-to-batch reproducibility, important for high-tech manufacturing.
Different methods include fire spheroidization, where irregular silica bits are melted and improved into spheres by means of high-temperature plasma or fire therapy, and emulsion-based techniques that permit encapsulation or core-shell structuring.
For large-scale industrial manufacturing, salt silicate-based rainfall courses are additionally employed, using affordable scalability while preserving acceptable sphericity and purity.
Surface functionalization throughout or after synthesis– such as grafting with silanes– can present organic groups (e.g., amino, epoxy, or plastic) to boost compatibility with polymer matrices or enable bioconjugation.
( Spherical Silica)
2. Functional Properties and Performance Advantages
2.1 Flowability, Loading Density, and Rheological Behavior
One of the most substantial advantages of round silica is its remarkable flowability contrasted to angular equivalents, a property critical in powder handling, injection molding, and additive manufacturing.
The absence of sharp sides lowers interparticle friction, allowing thick, homogeneous packing with minimal void space, which improves the mechanical integrity and thermal conductivity of last composites.
In digital product packaging, high packing thickness directly translates to reduce material in encapsulants, boosting thermal security and minimizing coefficient of thermal expansion (CTE).
Moreover, spherical particles impart positive rheological homes to suspensions and pastes, minimizing viscosity and preventing shear thickening, which makes sure smooth giving and consistent coating in semiconductor construction.
This controlled circulation actions is vital in applications such as flip-chip underfill, where precise material positioning and void-free dental filling are needed.
2.2 Mechanical and Thermal Security
Spherical silica displays outstanding mechanical strength and elastic modulus, contributing to the support of polymer matrices without causing anxiety concentration at sharp corners.
When included into epoxy materials or silicones, it improves solidity, wear resistance, and dimensional stability under thermal biking.
Its reduced thermal expansion coefficient (~ 0.5 × 10 ⁻⁶/ K) closely matches that of silicon wafers and published circuit card, lessening thermal mismatch stresses in microelectronic devices.
In addition, spherical silica preserves structural integrity at elevated temperature levels (approximately ~ 1000 ° C in inert environments), making it suitable for high-reliability applications in aerospace and auto electronic devices.
The combination of thermal stability and electrical insulation additionally improves its utility in power components and LED product packaging.
3. Applications in Electronic Devices and Semiconductor Sector
3.1 Function in Digital Product Packaging and Encapsulation
Round silica is a keystone material in the semiconductor industry, mostly used as a filler in epoxy molding substances (EMCs) for chip encapsulation.
Changing standard irregular fillers with spherical ones has actually changed product packaging innovation by making it possible for higher filler loading (> 80 wt%), boosted mold and mildew flow, and reduced cord sweep during transfer molding.
This advancement sustains the miniaturization of integrated circuits and the development of innovative plans such as system-in-package (SiP) and fan-out wafer-level product packaging (FOWLP).
The smooth surface area of round bits likewise lessens abrasion of fine gold or copper bonding cords, boosting device reliability and yield.
Additionally, their isotropic nature ensures uniform tension circulation, lowering the danger of delamination and fracturing during thermal cycling.
3.2 Use in Polishing and Planarization Processes
In chemical mechanical planarization (CMP), round silica nanoparticles work as unpleasant representatives in slurries designed to polish silicon wafers, optical lenses, and magnetic storage space media.
Their uniform shapes and size make sure regular product removal prices and marginal surface area defects such as scrapes or pits.
Surface-modified round silica can be tailored for particular pH atmospheres and sensitivity, improving selectivity in between various products on a wafer surface.
This precision allows the construction of multilayered semiconductor frameworks with nanometer-scale flatness, a requirement for innovative lithography and device integration.
4. Emerging and Cross-Disciplinary Applications
4.1 Biomedical and Diagnostic Uses
Past electronics, spherical silica nanoparticles are increasingly used in biomedicine because of their biocompatibility, convenience of functionalization, and tunable porosity.
They work as drug distribution carriers, where therapeutic agents are loaded into mesoporous structures and launched in action to stimuli such as pH or enzymes.
In diagnostics, fluorescently identified silica spheres function as steady, safe probes for imaging and biosensing, outmatching quantum dots in certain biological settings.
Their surface area can be conjugated with antibodies, peptides, or DNA for targeted discovery of pathogens or cancer cells biomarkers.
4.2 Additive Production and Compound Materials
In 3D printing, especially in binder jetting and stereolithography, round silica powders boost powder bed thickness and layer harmony, leading to higher resolution and mechanical strength in printed ceramics.
As a strengthening stage in metal matrix and polymer matrix compounds, it improves rigidity, thermal monitoring, and put on resistance without compromising processability.
Study is likewise checking out crossbreed particles– core-shell frameworks with silica coverings over magnetic or plasmonic cores– for multifunctional materials in sensing and energy storage.
To conclude, spherical silica exemplifies just how morphological control at the mini- and nanoscale can transform an usual material into a high-performance enabler throughout diverse technologies.
From securing silicon chips to progressing medical diagnostics, its special mix of physical, chemical, and rheological residential properties remains to drive development in science and design.
