1. Make-up and Structural Qualities of Fused Quartz
1.1 Amorphous Network and Thermal Security

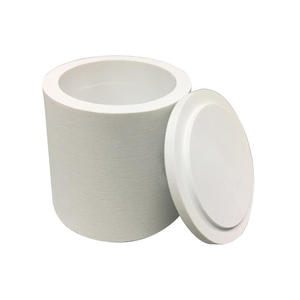

(Quartz Crucibles)
Quartz crucibles are high-temperature containers made from integrated silica, a synthetic type of silicon dioxide (SiO ₂) originated from the melting of natural quartz crystals at temperature levels going beyond 1700 ° C.
Unlike crystalline quartz, integrated silica possesses an amorphous three-dimensional network of corner-sharing SiO ₄ tetrahedra, which conveys outstanding thermal shock resistance and dimensional security under quick temperature level adjustments.
This disordered atomic framework avoids bosom along crystallographic aircrafts, making fused silica much less prone to breaking throughout thermal cycling compared to polycrystalline porcelains.
The material shows a reduced coefficient of thermal development (~ 0.5 × 10 ⁻⁶/ K), one of the most affordable amongst design materials, enabling it to hold up against severe thermal slopes without fracturing– an important home in semiconductor and solar battery production.
Merged silica additionally preserves superb chemical inertness against a lot of acids, liquified steels, and slags, although it can be gradually engraved by hydrofluoric acid and hot phosphoric acid.
Its high conditioning point (~ 1600– 1730 ° C, depending upon pureness and OH material) permits sustained operation at elevated temperature levels needed for crystal growth and steel refining procedures.
1.2 Pureness Grading and Trace Element Control
The efficiency of quartz crucibles is extremely dependent on chemical pureness, particularly the focus of metal pollutants such as iron, sodium, potassium, aluminum, and titanium.
Also trace quantities (parts per million degree) of these contaminants can move into molten silicon during crystal development, weakening the electric residential properties of the resulting semiconductor material.
High-purity qualities made use of in electronic devices manufacturing usually have over 99.95% SiO TWO, with alkali steel oxides restricted to less than 10 ppm and transition metals listed below 1 ppm.
Impurities originate from raw quartz feedstock or processing devices and are lessened through mindful selection of mineral resources and filtration strategies like acid leaching and flotation.
Furthermore, the hydroxyl (OH) content in merged silica affects its thermomechanical behavior; high-OH types provide far better UV transmission however lower thermal stability, while low-OH variants are liked for high-temperature applications due to minimized bubble formation.
( Quartz Crucibles)
2. Manufacturing Refine and Microstructural Layout
2.1 Electrofusion and Developing Strategies
Quartz crucibles are primarily created via electrofusion, a procedure in which high-purity quartz powder is fed into a revolving graphite mold within an electric arc heating system.
An electric arc generated between carbon electrodes thaws the quartz fragments, which strengthen layer by layer to develop a smooth, thick crucible form.
This approach creates a fine-grained, uniform microstructure with marginal bubbles and striae, important for uniform warm circulation and mechanical integrity.
Different approaches such as plasma fusion and fire blend are utilized for specialized applications requiring ultra-low contamination or specific wall density accounts.
After casting, the crucibles go through regulated cooling (annealing) to soothe inner stress and anxieties and protect against spontaneous splitting throughout service.
Surface finishing, consisting of grinding and brightening, makes certain dimensional precision and lowers nucleation websites for undesirable formation during usage.
2.2 Crystalline Layer Design and Opacity Control
A specifying attribute of contemporary quartz crucibles, especially those used in directional solidification of multicrystalline silicon, is the crafted internal layer structure.
During production, the internal surface area is usually treated to advertise the development of a thin, controlled layer of cristobalite– a high-temperature polymorph of SiO TWO– upon initial home heating.
This cristobalite layer acts as a diffusion obstacle, reducing straight interaction between molten silicon and the underlying fused silica, therefore minimizing oxygen and metallic contamination.
In addition, the presence of this crystalline stage boosts opacity, boosting infrared radiation absorption and advertising even more uniform temperature distribution within the thaw.
Crucible designers meticulously stabilize the density and continuity of this layer to avoid spalling or breaking as a result of volume changes during stage shifts.
3. Practical Performance in High-Temperature Applications
3.1 Function in Silicon Crystal Growth Processes
Quartz crucibles are indispensable in the production of monocrystalline and multicrystalline silicon, working as the main container for molten silicon in Czochralski (CZ) and directional solidification systems (DS).
In the CZ procedure, a seed crystal is dipped into molten silicon held in a quartz crucible and slowly pulled upwards while rotating, enabling single-crystal ingots to develop.
Although the crucible does not straight get in touch with the growing crystal, communications in between molten silicon and SiO ₂ walls cause oxygen dissolution into the melt, which can influence carrier life time and mechanical toughness in completed wafers.
In DS processes for photovoltaic-grade silicon, large quartz crucibles allow the controlled cooling of hundreds of kgs of molten silicon right into block-shaped ingots.
Below, finishings such as silicon nitride (Si four N FOUR) are related to the internal surface area to prevent adhesion and assist in simple release of the solidified silicon block after cooling down.
3.2 Destruction Devices and Life Span Limitations
Despite their effectiveness, quartz crucibles degrade throughout repeated high-temperature cycles as a result of a number of related devices.
Viscous flow or contortion happens at long term exposure over 1400 ° C, leading to wall thinning and loss of geometric honesty.
Re-crystallization of fused silica into cristobalite produces interior tensions because of volume expansion, possibly causing fractures or spallation that pollute the thaw.
Chemical erosion develops from decrease responses between molten silicon and SiO TWO: SiO ₂ + Si → 2SiO(g), producing unstable silicon monoxide that escapes and weakens the crucible wall.
Bubble development, driven by trapped gases or OH groups, additionally compromises structural stamina and thermal conductivity.
These destruction paths restrict the number of reuse cycles and necessitate specific procedure control to optimize crucible lifespan and product yield.
4. Emerging Developments and Technological Adaptations
4.1 Coatings and Composite Alterations
To enhance performance and longevity, advanced quartz crucibles include useful layers and composite frameworks.
Silicon-based anti-sticking layers and doped silica finishings enhance release characteristics and lower oxygen outgassing throughout melting.
Some makers incorporate zirconia (ZrO TWO) bits right into the crucible wall surface to raise mechanical stamina and resistance to devitrification.
Study is recurring into completely clear or gradient-structured crucibles made to maximize radiant heat transfer in next-generation solar heating system styles.
4.2 Sustainability and Recycling Obstacles
With enhancing demand from the semiconductor and photovoltaic or pv sectors, lasting use quartz crucibles has become a top priority.
Used crucibles infected with silicon residue are difficult to reuse as a result of cross-contamination risks, bring about considerable waste generation.
Efforts concentrate on creating reusable crucible liners, improved cleaning procedures, and closed-loop recycling systems to recoup high-purity silica for second applications.
As device effectiveness demand ever-higher product purity, the duty of quartz crucibles will remain to develop via technology in products scientific research and process engineering.
In summary, quartz crucibles represent a critical interface in between resources and high-performance digital items.
Their unique mix of purity, thermal resilience, and architectural design enables the construction of silicon-based technologies that power modern-day computer and renewable energy systems.
