1. Product Residences and Structural Integrity
1.1 Intrinsic Features of Silicon Carbide

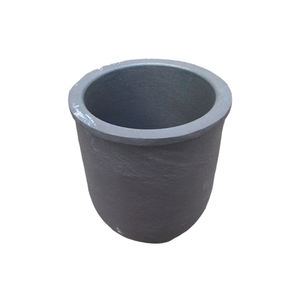

(Silicon Carbide Crucibles)
Silicon carbide (SiC) is a covalent ceramic substance composed of silicon and carbon atoms arranged in a tetrahedral latticework structure, primarily existing in over 250 polytypic kinds, with 6H, 4H, and 3C being the most highly appropriate.
Its strong directional bonding conveys phenomenal hardness (Mohs ~ 9.5), high thermal conductivity (80– 120 W/(m · K )for pure single crystals), and superior chemical inertness, making it among the most durable materials for severe environments.
The large bandgap (2.9– 3.3 eV) ensures outstanding electrical insulation at room temperature level and high resistance to radiation damage, while its reduced thermal development coefficient (~ 4.0 × 10 ⁻⁶/ K) contributes to superior thermal shock resistance.
These innate properties are maintained also at temperatures surpassing 1600 ° C, enabling SiC to keep architectural honesty under extended direct exposure to thaw metals, slags, and responsive gases.
Unlike oxide ceramics such as alumina, SiC does not react conveniently with carbon or kind low-melting eutectics in minimizing atmospheres, an important benefit in metallurgical and semiconductor processing.
When fabricated right into crucibles– vessels developed to have and warm materials– SiC outshines standard products like quartz, graphite, and alumina in both life expectancy and procedure dependability.
1.2 Microstructure and Mechanical Security
The efficiency of SiC crucibles is closely tied to their microstructure, which depends upon the manufacturing technique and sintering ingredients used.
Refractory-grade crucibles are commonly produced through reaction bonding, where permeable carbon preforms are infiltrated with molten silicon, forming β-SiC via the response Si(l) + C(s) → SiC(s).
This procedure yields a composite framework of primary SiC with recurring totally free silicon (5– 10%), which enhances thermal conductivity yet may limit use over 1414 ° C(the melting factor of silicon).
Conversely, totally sintered SiC crucibles are made with solid-state or liquid-phase sintering using boron and carbon or alumina-yttria additives, attaining near-theoretical density and greater purity.
These show superior creep resistance and oxidation stability yet are much more pricey and difficult to make in plus sizes.
( Silicon Carbide Crucibles)
The fine-grained, interlocking microstructure of sintered SiC gives excellent resistance to thermal fatigue and mechanical erosion, important when managing liquified silicon, germanium, or III-V compounds in crystal growth processes.
Grain limit design, including the control of secondary phases and porosity, plays an important duty in identifying lasting toughness under cyclic home heating and aggressive chemical environments.
2. Thermal Efficiency and Environmental Resistance
2.1 Thermal Conductivity and Heat Distribution
One of the specifying benefits of SiC crucibles is their high thermal conductivity, which allows rapid and consistent heat transfer during high-temperature processing.
In contrast to low-conductivity materials like integrated silica (1– 2 W/(m · K)), SiC successfully distributes thermal energy throughout the crucible wall surface, lessening local locations and thermal slopes.
This harmony is vital in procedures such as directional solidification of multicrystalline silicon for photovoltaics, where temperature level homogeneity directly impacts crystal quality and defect density.
The mix of high conductivity and reduced thermal expansion causes an exceptionally high thermal shock parameter (R = k(1 − ν)α/ σ), making SiC crucibles immune to breaking during rapid home heating or cooling down cycles.
This enables faster heating system ramp prices, enhanced throughput, and decreased downtime due to crucible failure.
Additionally, the product’s ability to stand up to duplicated thermal biking without significant deterioration makes it suitable for set handling in industrial heating systems operating over 1500 ° C.
2.2 Oxidation and Chemical Compatibility
At raised temperatures in air, SiC undergoes passive oxidation, developing a safety layer of amorphous silica (SiO TWO) on its surface area: SiC + 3/2 O ₂ → SiO ₂ + CO.
This glazed layer densifies at heats, acting as a diffusion barrier that slows more oxidation and preserves the underlying ceramic framework.
Nevertheless, in reducing environments or vacuum cleaner conditions– usual in semiconductor and metal refining– oxidation is reduced, and SiC stays chemically stable against molten silicon, light weight aluminum, and several slags.
It withstands dissolution and reaction with molten silicon up to 1410 ° C, although prolonged exposure can result in small carbon pick-up or interface roughening.
Most importantly, SiC does not introduce metallic impurities right into delicate melts, a key need for electronic-grade silicon manufacturing where contamination by Fe, Cu, or Cr must be maintained below ppb degrees.
Nevertheless, care must be taken when processing alkaline planet metals or extremely responsive oxides, as some can corrode SiC at extreme temperature levels.
3. Manufacturing Processes and Quality Control
3.1 Manufacture Methods and Dimensional Control
The manufacturing of SiC crucibles involves shaping, drying, and high-temperature sintering or infiltration, with methods selected based on required purity, dimension, and application.
Common forming methods consist of isostatic pressing, extrusion, and slip spreading, each using different degrees of dimensional accuracy and microstructural harmony.
For big crucibles utilized in photovoltaic ingot casting, isostatic pushing makes certain consistent wall thickness and thickness, lowering the threat of uneven thermal development and failing.
Reaction-bonded SiC (RBSC) crucibles are economical and widely used in factories and solar industries, though recurring silicon limits maximum solution temperature level.
Sintered SiC (SSiC) versions, while more costly, offer superior purity, toughness, and resistance to chemical attack, making them ideal for high-value applications like GaAs or InP crystal development.
Accuracy machining after sintering might be needed to accomplish limited resistances, particularly for crucibles made use of in upright gradient freeze (VGF) or Czochralski (CZ) systems.
Surface finishing is important to decrease nucleation sites for defects and ensure smooth thaw flow throughout casting.
3.2 Quality Assurance and Efficiency Validation
Extensive quality control is vital to guarantee integrity and long life of SiC crucibles under requiring operational conditions.
Non-destructive analysis strategies such as ultrasonic screening and X-ray tomography are utilized to spot internal splits, voids, or thickness variations.
Chemical analysis using XRF or ICP-MS confirms low degrees of metal impurities, while thermal conductivity and flexural stamina are measured to confirm product uniformity.
Crucibles are typically based on simulated thermal biking examinations before shipment to recognize potential failing modes.
Batch traceability and qualification are basic in semiconductor and aerospace supply chains, where part failure can cause pricey manufacturing losses.
4. Applications and Technical Effect
4.1 Semiconductor and Photovoltaic Industries
Silicon carbide crucibles play a crucial function in the production of high-purity silicon for both microelectronics and solar batteries.
In directional solidification furnaces for multicrystalline photovoltaic or pv ingots, huge SiC crucibles function as the main container for molten silicon, withstanding temperature levels over 1500 ° C for multiple cycles.
Their chemical inertness prevents contamination, while their thermal stability guarantees uniform solidification fronts, leading to higher-quality wafers with fewer dislocations and grain boundaries.
Some manufacturers coat the inner surface area with silicon nitride or silica to better minimize bond and promote ingot release after cooling down.
In research-scale Czochralski growth of compound semiconductors, smaller SiC crucibles are made use of to hold thaws of GaAs, InSb, or CdTe, where very little reactivity and dimensional stability are vital.
4.2 Metallurgy, Factory, and Emerging Technologies
Past semiconductors, SiC crucibles are important in steel refining, alloy preparation, and laboratory-scale melting procedures including light weight aluminum, copper, and rare-earth elements.
Their resistance to thermal shock and erosion makes them ideal for induction and resistance heaters in shops, where they outlive graphite and alumina options by a number of cycles.
In additive manufacturing of reactive steels, SiC containers are made use of in vacuum induction melting to prevent crucible failure and contamination.
Emerging applications include molten salt activators and concentrated solar power systems, where SiC vessels may consist of high-temperature salts or liquid metals for thermal power storage.
With continuous advances in sintering modern technology and finish engineering, SiC crucibles are poised to sustain next-generation materials handling, making it possible for cleaner, extra reliable, and scalable commercial thermal systems.
In summary, silicon carbide crucibles represent an important enabling technology in high-temperature material synthesis, incorporating phenomenal thermal, mechanical, and chemical efficiency in a solitary crafted component.
Their extensive fostering throughout semiconductor, solar, and metallurgical industries emphasizes their duty as a foundation of modern commercial porcelains.
