1. Product Basics and Crystal Chemistry
1.1 Make-up and Polymorphic Structure

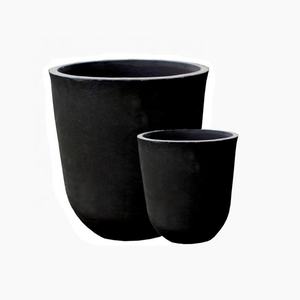

(Silicon Carbide Ceramics)
Silicon carbide (SiC) is a covalent ceramic substance made up of silicon and carbon atoms in a 1:1 stoichiometric proportion, renowned for its outstanding hardness, thermal conductivity, and chemical inertness.
It exists in over 250 polytypes– crystal structures differing in stacking series– amongst which 3C-SiC (cubic), 4H-SiC, and 6H-SiC (hexagonal) are the most technologically relevant.
The solid directional covalent bonds (Si– C bond power ~ 318 kJ/mol) lead to a high melting factor (~ 2700 ° C), low thermal growth (~ 4.0 × 10 ⁻⁶/ K), and outstanding resistance to thermal shock.
Unlike oxide porcelains such as alumina, SiC lacks a native glassy stage, adding to its security in oxidizing and destructive atmospheres approximately 1600 ° C.
Its large bandgap (2.3– 3.3 eV, relying on polytype) also grants it with semiconductor residential properties, making it possible for twin use in architectural and electronic applications.
1.2 Sintering Difficulties and Densification Techniques
Pure SiC is extremely challenging to densify as a result of its covalent bonding and reduced self-diffusion coefficients, necessitating making use of sintering aids or innovative handling methods.
Reaction-bonded SiC (RB-SiC) is created by infiltrating permeable carbon preforms with molten silicon, forming SiC in situ; this technique yields near-net-shape parts with residual silicon (5– 20%).
Solid-state sintered SiC (SSiC) makes use of boron and carbon additives to promote densification at ~ 2000– 2200 ° C under inert atmosphere, attaining > 99% academic density and exceptional mechanical homes.
Liquid-phase sintered SiC (LPS-SiC) uses oxide ingredients such as Al ₂ O ₃– Y ₂ O FIVE, developing a transient fluid that boosts diffusion however might lower high-temperature strength because of grain-boundary stages.
Warm pressing and trigger plasma sintering (SPS) use quick, pressure-assisted densification with great microstructures, ideal for high-performance components calling for very little grain development.
2. Mechanical and Thermal Performance Characteristics
2.1 Stamina, Solidity, and Wear Resistance
Silicon carbide ceramics show Vickers solidity worths of 25– 30 Grade point average, 2nd just to ruby and cubic boron nitride among design materials.
Their flexural stamina normally ranges from 300 to 600 MPa, with fracture strength (K_IC) of 3– 5 MPa · m ONE/ ²– moderate for porcelains however improved with microstructural engineering such as whisker or fiber reinforcement.
The combination of high hardness and elastic modulus (~ 410 Grade point average) makes SiC extremely immune to unpleasant and erosive wear, outmatching tungsten carbide and hardened steel in slurry and particle-laden settings.
( Silicon Carbide Ceramics)
In industrial applications such as pump seals, nozzles, and grinding media, SiC components show life span a number of times longer than standard options.
Its reduced thickness (~ 3.1 g/cm FOUR) more adds to use resistance by minimizing inertial forces in high-speed rotating components.
2.2 Thermal Conductivity and Security
Among SiC’s most distinguishing attributes is its high thermal conductivity– varying from 80 to 120 W/(m · K )for polycrystalline types, and as much as 490 W/(m · K) for single-crystal 4H-SiC– exceeding most metals other than copper and aluminum.
This residential or commercial property makes it possible for effective warmth dissipation in high-power digital substrates, brake discs, and warm exchanger components.
Coupled with low thermal growth, SiC shows exceptional thermal shock resistance, evaluated by the R-parameter (σ(1– ν)k/ αE), where high worths indicate resilience to fast temperature level changes.
For example, SiC crucibles can be heated from area temperature to 1400 ° C in mins without splitting, an accomplishment unattainable for alumina or zirconia in similar problems.
Furthermore, SiC keeps stamina as much as 1400 ° C in inert environments, making it optimal for furnace fixtures, kiln furnishings, and aerospace parts subjected to severe thermal cycles.
3. Chemical Inertness and Rust Resistance
3.1 Behavior in Oxidizing and Minimizing Ambiences
At temperatures listed below 800 ° C, SiC is highly steady in both oxidizing and lowering settings.
Above 800 ° C in air, a protective silica (SiO TWO) layer kinds on the surface area through oxidation (SiC + 3/2 O ₂ → SiO ₂ + CARBON MONOXIDE), which passivates the material and slows additional destruction.
Nevertheless, in water vapor-rich or high-velocity gas streams over 1200 ° C, this silica layer can volatilize as Si(OH)₄, resulting in increased recession– an important factor to consider in generator and combustion applications.
In decreasing atmospheres or inert gases, SiC remains secure approximately its decomposition temperature (~ 2700 ° C), with no phase changes or strength loss.
This stability makes it ideal for liquified steel handling, such as light weight aluminum or zinc crucibles, where it withstands wetting and chemical assault much better than graphite or oxides.
3.2 Resistance to Acids, Alkalis, and Molten Salts
Silicon carbide is basically inert to all acids other than hydrofluoric acid (HF) and solid oxidizing acid combinations (e.g., HF– HNO THREE).
It shows excellent resistance to alkalis approximately 800 ° C, though prolonged exposure to molten NaOH or KOH can cause surface area etching by means of development of soluble silicates.
In molten salt environments– such as those in focused solar power (CSP) or atomic power plants– SiC demonstrates superior deterioration resistance compared to nickel-based superalloys.
This chemical robustness underpins its use in chemical procedure equipment, consisting of valves, linings, and heat exchanger tubes managing aggressive media like chlorine, sulfuric acid, or salt water.
4. Industrial Applications and Arising Frontiers
4.1 Established Utilizes in Power, Protection, and Production
Silicon carbide porcelains are integral to numerous high-value industrial systems.
In the energy industry, they function as wear-resistant linings in coal gasifiers, parts in nuclear gas cladding (SiC/SiC compounds), and substrates for high-temperature strong oxide gas cells (SOFCs).
Protection applications consist of ballistic shield plates, where SiC’s high hardness-to-density proportion gives remarkable protection versus high-velocity projectiles contrasted to alumina or boron carbide at lower cost.
In manufacturing, SiC is made use of for precision bearings, semiconductor wafer dealing with parts, and unpleasant blowing up nozzles as a result of its dimensional security and purity.
Its use in electric car (EV) inverters as a semiconductor substratum is rapidly growing, driven by performance gains from wide-bandgap electronic devices.
4.2 Next-Generation Developments and Sustainability
Recurring research study concentrates on SiC fiber-reinforced SiC matrix compounds (SiC/SiC), which exhibit pseudo-ductile behavior, improved strength, and retained stamina over 1200 ° C– excellent for jet engines and hypersonic vehicle leading sides.
Additive manufacturing of SiC using binder jetting or stereolithography is progressing, allowing complicated geometries formerly unattainable via conventional developing methods.
From a sustainability point of view, SiC’s durability minimizes replacement regularity and lifecycle emissions in industrial systems.
Recycling of SiC scrap from wafer slicing or grinding is being established with thermal and chemical recuperation processes to redeem high-purity SiC powder.
As sectors press towards greater performance, electrification, and extreme-environment procedure, silicon carbide-based porcelains will continue to be at the forefront of advanced products engineering, linking the void between structural strength and useful versatility.
