Comprehensive comparison and engineering application analysis of alumina, zirconia, silicon carbide and silicon nitride ceramics alumina refractory

Material Overview

Advanced architectural porcelains, because of their one-of-a-kind crystal framework and chemical bond qualities, show performance advantages that steels and polymer products can not match in extreme environments. Alumina (Al ₂ O SIX), zirconium oxide (ZrO ₂), silicon carbide (SiC) and silicon nitride (Si ₃ N FOUR) are the four major mainstream design porcelains, and there are vital differences in their microstructures: Al two O ₃ belongs to the hexagonal crystal system and depends on strong ionic bonds; ZrO two has three crystal kinds: monoclinic (m), tetragonal (t) and cubic (c), and gets unique mechanical residential properties via phase change toughening mechanism; SiC and Si Five N four are non-oxide ceramics with covalent bonds as the primary component, and have stronger chemical stability. These structural differences directly result in significant distinctions in the preparation process, physical residential or commercial properties and design applications of the 4. This article will methodically examine the preparation-structure-performance relationship of these 4 porcelains from the perspective of materials science, and explore their prospects for industrial application.

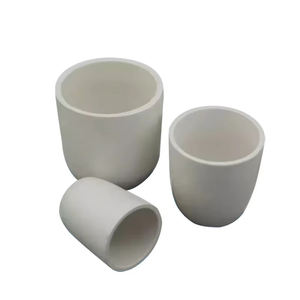

(Alumina Ceramic)

Prep work procedure and microstructure control

In terms of prep work process, the four porcelains reveal obvious differences in technological paths. Alumina porcelains make use of a reasonably standard sintering process, generally making use of α-Al ₂ O five powder with a purity of more than 99.5%, and sintering at 1600-1800 ° C after completely dry pressing. The secret to its microstructure control is to inhibit unusual grain growth, and 0.1-0.5 wt% MgO is usually included as a grain boundary diffusion prevention. Zirconia porcelains need to introduce stabilizers such as 3mol% Y ₂ O two to maintain the metastable tetragonal stage (t-ZrO ₂), and utilize low-temperature sintering at 1450-1550 ° C to stay clear of extreme grain development. The core process challenge depends on accurately regulating the t → m phase change temperature level home window (Ms factor). Since silicon carbide has a covalent bond proportion of approximately 88%, solid-state sintering needs a high temperature of more than 2100 ° C and relies on sintering help such as B-C-Al to form a fluid phase. The response sintering approach (RBSC) can accomplish densification at 1400 ° C by infiltrating Si+C preforms with silicon melt, however 5-15% complimentary Si will certainly stay. The preparation of silicon nitride is the most complicated, usually making use of general practitioner (gas pressure sintering) or HIP (hot isostatic pressing) processes, including Y TWO O THREE-Al two O three series sintering aids to form an intercrystalline glass phase, and warm treatment after sintering to crystallize the glass phase can significantly improve high-temperature performance.

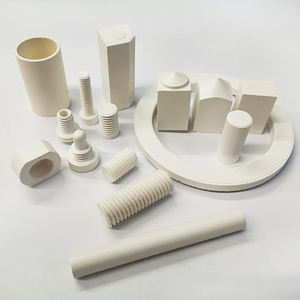

( Zirconia Ceramic)

Comparison of mechanical buildings and enhancing system

Mechanical buildings are the core examination indicators of structural ceramics. The four types of products show completely various fortifying devices:


( Mechanical properties comparison of advanced ceramics)

Alumina generally depends on fine grain conditioning. When the grain dimension is minimized from 10μm to 1μm, the strength can be increased by 2-3 times. The excellent strength of zirconia originates from the stress-induced phase transformation system. The stress and anxiety field at the crack pointer triggers the t → m stage transformation accompanied by a 4% quantity growth, leading to a compressive anxiety protecting result. Silicon carbide can enhance the grain border bonding toughness through solid remedy of elements such as Al-N-B, while the rod-shaped β-Si four N four grains of silicon nitride can create a pull-out effect similar to fiber toughening. Fracture deflection and bridging add to the improvement of sturdiness. It is worth noting that by creating multiphase ceramics such as ZrO TWO-Si Five N Four or SiC-Al ₂ O SIX, a variety of strengthening devices can be coordinated to make KIC go beyond 15MPa · m 1ST/ TWO.

Thermophysical properties and high-temperature habits

High-temperature security is the crucial benefit of structural ceramics that differentiates them from typical materials:


(Thermophysical properties of engineering ceramics)

Silicon carbide exhibits the best thermal monitoring efficiency, with a thermal conductivity of approximately 170W/m · K(comparable to light weight aluminum alloy), which is due to its straightforward Si-C tetrahedral structure and high phonon propagation price. The reduced thermal growth coefficient of silicon nitride (3.2 × 10 ⁻⁶/ K) makes it have outstanding thermal shock resistance, and the vital ΔT worth can get to 800 ° C, which is particularly appropriate for duplicated thermal cycling settings. Although zirconium oxide has the highest melting factor, the conditioning of the grain border glass phase at heat will create a sharp drop in toughness. By taking on nano-composite technology, it can be increased to 1500 ° C and still maintain 500MPa toughness. Alumina will certainly experience grain boundary slide over 1000 ° C, and the enhancement of nano ZrO ₂ can develop a pinning effect to hinder high-temperature creep.

Chemical security and rust actions

In a destructive atmosphere, the 4 sorts of ceramics exhibit substantially various failure systems. Alumina will liquify externally in strong acid (pH <2) and strong alkali (pH > 12) options, and the deterioration price increases tremendously with raising temperature, reaching 1mm/year in steaming concentrated hydrochloric acid. Zirconia has great tolerance to inorganic acids, but will certainly undertake low temperature level deterioration (LTD) in water vapor environments over 300 ° C, and the t → m phase change will certainly cause the formation of a tiny split network. The SiO two protective layer based on the surface area of silicon carbide provides it outstanding oxidation resistance below 1200 ° C, yet soluble silicates will certainly be created in liquified alkali metal settings. The deterioration actions of silicon nitride is anisotropic, and the rust rate along the c-axis is 3-5 times that of the a-axis. NH Four and Si(OH)₄ will certainly be generated in high-temperature and high-pressure water vapor, bring about material cleavage. By enhancing the make-up, such as preparing O’-SiAlON ceramics, the alkali rust resistance can be enhanced by greater than 10 times.


( Silicon Carbide Disc)

Regular Engineering Applications and Case Studies

In the aerospace area, NASA utilizes reaction-sintered SiC for the leading side components of the X-43A hypersonic aircraft, which can stand up to 1700 ° C aerodynamic home heating. GE Aeronautics utilizes HIP-Si two N four to manufacture turbine rotor blades, which is 60% lighter than nickel-based alloys and enables greater operating temperature levels. In the clinical area, the fracture stamina of 3Y-TZP zirconia all-ceramic crowns has actually reached 1400MPa, and the service life can be included greater than 15 years with surface area slope nano-processing. In the semiconductor sector, high-purity Al ₂ O three porcelains (99.99%) are used as cavity materials for wafer etching equipment, and the plasma corrosion rate is <0.1μm/hour. The SiC-Al₂O₃ composite armor developed by Kyocera in Japan can achieve a V50 ballistic limit of 1800m/s, which is 30% thinner than traditional Al₂O₃ armor.

Technical challenges and development trends

The main technical bottlenecks currently faced include: long-term aging of zirconia (strength decay of 30-50% after 10 years), sintering deformation control of large-size SiC ceramics (warpage of > 500mm components < 0.1 mm ), and high production cost of silicon nitride(aerospace-grade HIP-Si three N ₄ gets to $ 2000/kg). The frontier advancement directions are focused on: ① Bionic framework style(such as covering split structure to boost strength by 5 times); two Ultra-high temperature sintering technology( such as trigger plasma sintering can accomplish densification within 10 mins); two Smart self-healing porcelains (consisting of low-temperature eutectic phase can self-heal cracks at 800 ° C); four Additive production technology (photocuring 3D printing precision has reached ± 25μm).


( Silicon Nitride Ceramics Tube)

Future advancement fads

In a thorough contrast, alumina will still dominate the traditional ceramic market with its price benefit, zirconia is irreplaceable in the biomedical field, silicon carbide is the recommended material for severe atmospheres, and silicon nitride has terrific possible in the area of high-end devices. In the next 5-10 years, through the integration of multi-scale architectural policy and smart production innovation, the efficiency limits of design porcelains are anticipated to accomplish new developments: as an example, the layout of nano-layered SiC/C porcelains can accomplish toughness of 15MPa · m ONE/ TWO, and the thermal conductivity of graphene-modified Al two O three can be enhanced to 65W/m · K. With the innovation of the “double carbon” method, the application scale of these high-performance porcelains in brand-new power (fuel cell diaphragms, hydrogen storage materials), environment-friendly production (wear-resistant components life enhanced by 3-5 times) and various other areas is expected to preserve a typical yearly development rate of greater than 12%.
